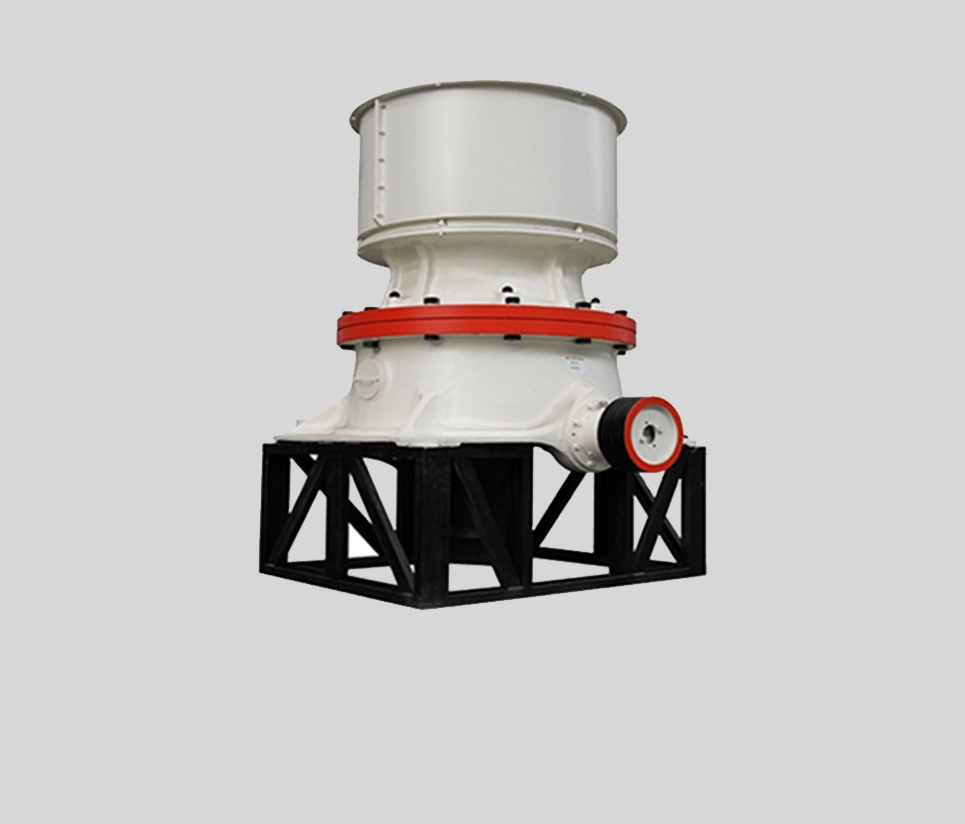

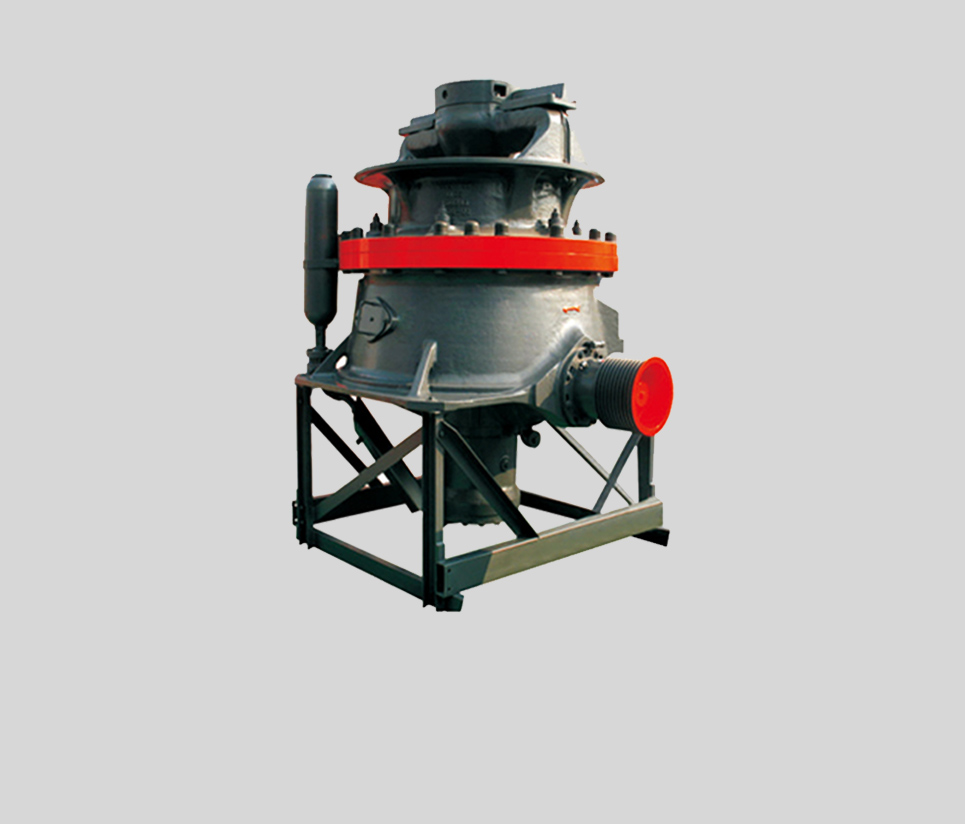

The CH Series Single-Cylinder Hydraulic Cone Crusher is widely used in construction, mining, building materials, metallurgy, and water conservancy. Featuring advanced laminated crushing technology, it produces fine and uniform particles. High automation level with multiple control modes makes operation simple and efficient.
Granite, basalt, river pebble, iron ore, limestone, quartz
Mining, construction, building materials, metallurgy, water conservancy
1) Reinforced frame with non-destructive testing
2) Multiple operating modes: manual, auto-load, auto-discharge
3) Positive pressure dust prevention extends bearing life
4) Integrated hydraulic and lubrication station saves space
|
Model |
Cavity Dia /(mm) |
CSS Range (mm) |
Capacity (t/h) |
Power (kW) |
Weight (t) |
|
CH420 |
900 |
38-190 |
60-180 |
132 |
10 |
|
CH430 |
1050 |
42-210 |
90-260 |
160 |
15 |
|
CH440 |
1200 |
48-240 |
120-350 |
220 |
21 |
|
CH660 |
1500 |
50-260 |
180-500 |
315 |
30 |
|
CH870 |
1750 |
55-280 |
280-700 |
450 |
50 |
